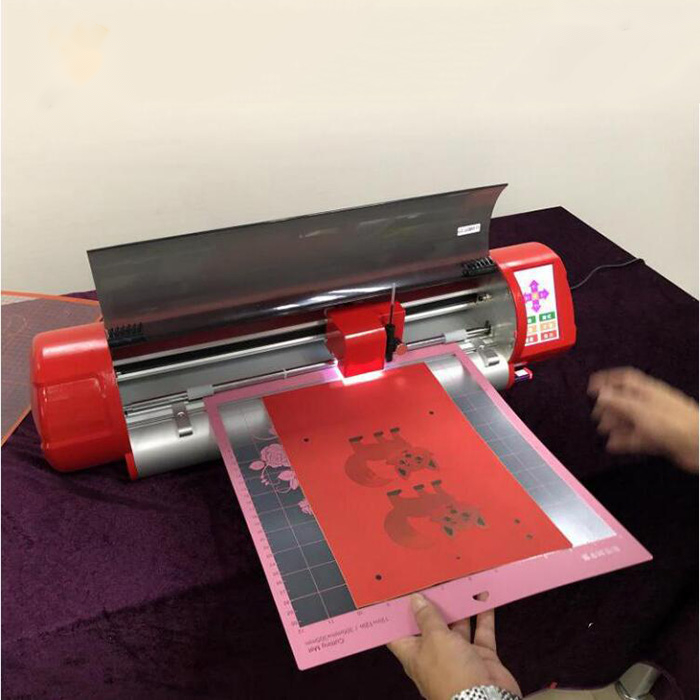

MC3+
Hescare
Product parameters:
Model Name | MC3+ |
Function | With built-in CCD camera, automatic contour cutting |
Motor | High speed, big power step motor, micro-step driver |
Control panel | 4.3 inch full touch screen |
Interfaces | USB/ U disk / Serial port (WiFi / Bluetooth optional ) |
Plotter instruction | Compatible DM/PL , HP/GL |
Main board | 32-bit ARM7 CPU，128Mb, High-speed CACHE Memory |
Feeding width | 450mm |
Cutting Width | 356mm |
Cutting force | 10-1000g (digital adjustable) |
Cutting speed | 800mm/s |
Maximum cutting thickness | 1 mm |
Net weight | 7.6 kg |
Package size | 830*290*300mm |
Mechanical precision | 0.025mm |
Type of plotter pen | All types diameter 11.4 mm plotter pen |
Advantages
1. Compatible to all files from Artcut, Signmaster, CDR, AI, CAD, Flexi, etc pattern making software
2. 4.3 inch full touch screen --- Easy to operate
3. Two languages selection: Chinese and English
4. Automatic contour cutting function: Four marks detection make sure the precisely contour cutting job
5. Multiple interfaces: Serial port, USB, U disk (Bluetooth/ wifi optional)
6. U disk offline working: .plt format file can be copied to U disk, and work without PC connection
7. Various material can be cut: Paper, jam, sticker, drafting paper, postcard, ink-jet paper, pvc, polyester film, fabric, leather etc
8. What you can do with an vinyl cutter?
√ Sublimation jobs: Heat transfer DIY, cutting heat transfer film and put on T-shirt or cap or other fabric products √ Home decoration can be done with vinyl
√ Decorating items, such as video game gear/controllers, model cars and many other items can be done with vinyl too
√ Directional signs, menu boards for restaurant, frame signs, real estate signs, banners, backlit signs, window lettering, car graphics, magnets, etc. Anything that can be cad cut and laid on a substrate can be made with your vinyl cutter..
